Making Knickers with Mercedes

Mercedes got a NEW Juki NX7 sewing machine just in time to make some knickers for a Christmas Fair stall run for her daughter’s work place. We’re thrilled to have Mercedes writing guest posts for us. Today’s post is all about knickers! It’s a technical post with detailed tips and tricks showing how Mercedes works with stretch fabrics on her Juki NX7.

I had made knickers for myself before, in fact my undies draw was full of me made ones, but I had never had them inspected at close quarters before by potential customers.  I needed to up my game. I looked at all the stages of construction and tried different techniques to get a perfect, consistent finish.  My favourite method so far, uses Fold Over Elastic. This post will show how to add Fold Over Elastic to the leg using the Juki NX7. I’m still getting to know this machine. I was really impressed with how the new features on the NX7 helped with this technique.

There are a lot of methods on-line on how to attach Fold Over Elastic, here after referred to as FOE, but I was looking for a consistent and visually pleasing method for my knickers.

I thought that these 2 methods were a little untidy.

I started with the simplest method, folding the elastic so it encased the raw edge and attaching with a triple zig-zag.  I found this a little fiddly and occasionally with the shaping of the leg opening I managed to completely miss the fabric and was left with a hole and a lot of unpicking.  I had also seen a recommendation to baste the FOE to the fabric first, but that did not appeal as it is fiddly and I found it difficult to get an even stretch of the elastic.

The final method I looked at was the “Two Step Method”.  In this method the elastic is first sewn to the fabric unfolded, and then folded over and sewn again.

The Two Step Method for stitching FOE to the knicker leg opening. I used a contrasting thread so that the stitching would show up clearly.

This method seemed to give me the control and consistency I was looking for. After a couple of tries I finally settled on my version of the Two Step Method; that I was happy with, and I could produce over and over again to an acceptable standard.  This  method attaches the fabric to the outer edge of the FOE using a narrow zig-zag. Then the elastic is folded over and stitched in place finishing with a wider triple zig-zag.

My take on this method needed a seam guide. However, I need to make a technical point here and that is Do Not Use a magnetic seam guide on any computerised or electronic sewing machine. The magnet and the electronics do not get on well with each other and the electronics may be damaged.  As an alternative for my NX7, I found an online suggestion to use a wad of Post-it notes as a seam guide.  It works perfectly! Who would have guessed.

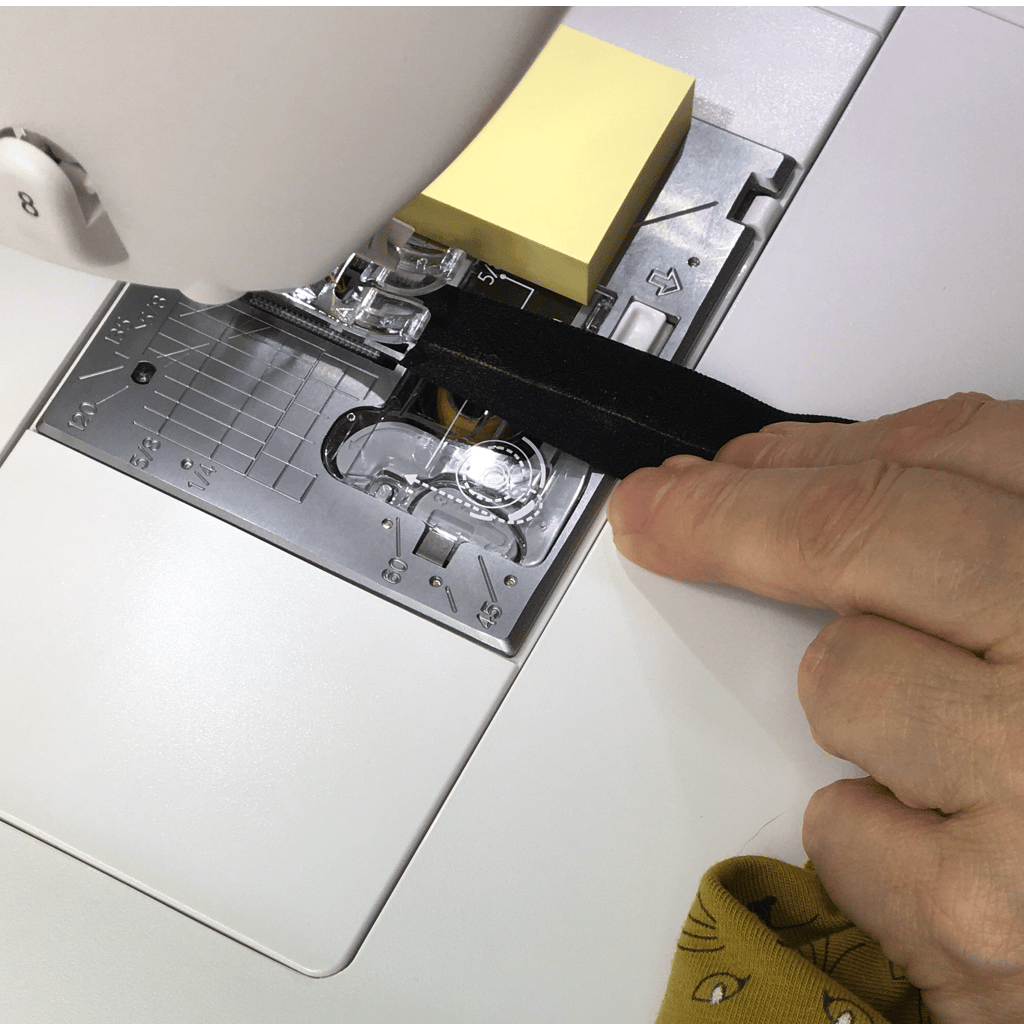

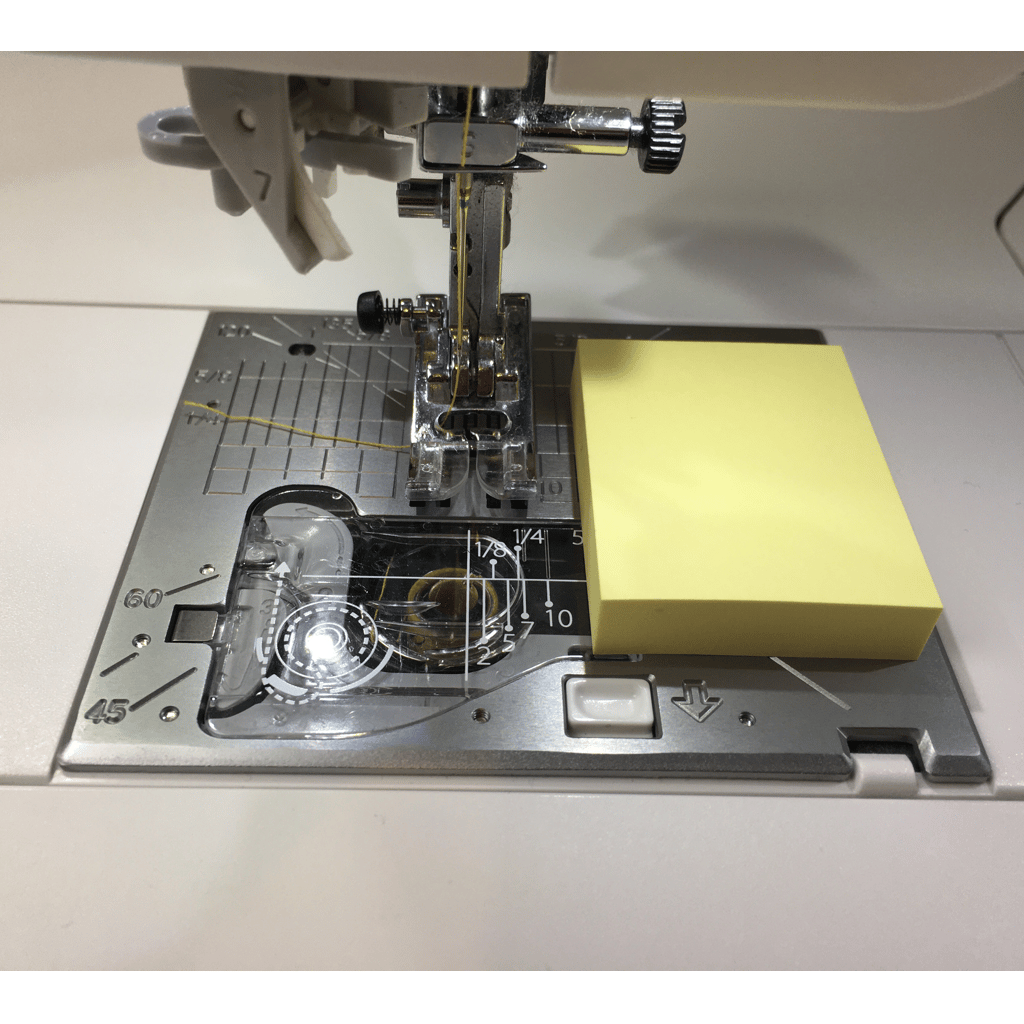

Post-it notes make a very good seam guide on electronic machines like the Juki NX7.

The reason for the seam guide is that for the first pass of the elastic you need to keep your eye on two things simultaneously.  Firstly, you need to keep the FOE in position so that the stitching is close to the edge.  The edge, however, is hidden by the fabric so you can’t see it.  This is where I find the seam guide is invaluable.  Instead of keeping an eye on the footplate, the seam guide is a physical presence past which the FOE cannot pass.  You can, within reason, completely forget about the position of the elastic and concentrate on the second thing, the position of the fabric.  To ensure an even edge and a smooth fold, the fabric needs to stay to the left of the FOE centre line.  To control this I keep an eye on the centre line and also use a point on the foot as my point of reference and try to keep my fabric on that point.

Let’s go through this in more detail. I’ve used contrasting thread to help you see the stitching. When you sew using a matching thread, the stitches will be virtually invisible.

In theory, I should be able to produce a table of settings for standard widths of FOE, but I like to do my settings from scratch each time I make a garment so it keeps things fresh in my mind.  I also like to check I have set my stitch width and length correctly before I start sewing. So my first step is always to check my settings on a spare piece of FOE.

As a starting point I cut my FOE 90% of the length of the edge I am covering. From this length I will use around 1cm overlap at each end, which helps with starting and finishing the stitching.  You may find that for your elastic or garment that this is not the best percentage, for example if using this technique for children’s leotards where a tighter grip around the leg is preferred.  As with everything it is always best to do a test first to make sure you are happy with the results.  After the FOE is cut mark the centre point and also the centre on the leg opening and pin together.

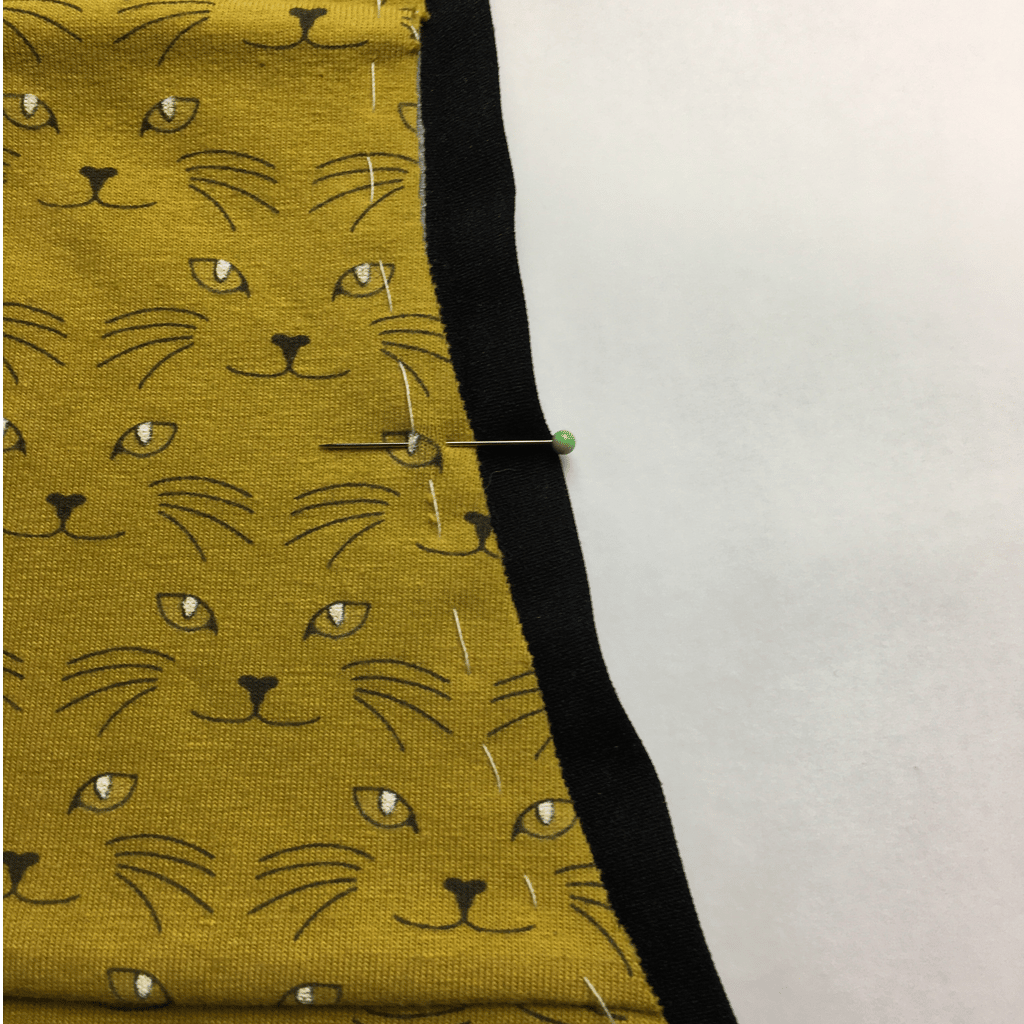

Centre of the FOE and leg opening pinned.  To prevent any movement of the gusset and main fabric while sewing I have basted the edges together.

It is important that you walk the edges together to find the centre and not just fold in half as there is likely to be a slight difference in its position.  This will ensure an even distribution of the elastic along the edge.

In the top picture the edges have been walked together to find the centre. In the bottom picture the pin marks the actual centre of the leg compared to when just folded

For the first row of zig-zag, I use stitch #15 on the NX7 which is the zig-zag left needle position. I prefer this to the centre orientated one as it means that more of the FOE is in contact with the feed dogs.  This is important to ensure an even stitch as I will be stretching the FOE to match the length of the fabric.  I like to use a narrow short stitch to ensure there is some stretch in the finished seam.  I always start with a 1.2 width and 1.4 length to see how it looks and stretches. I will then place the test piece under the foot, partly lower the needle for reference and move the elastic so the stitch line is close to the edge.  I can then lower the foot and position my seam guide as in the photos below.

I then do a quick test of the stitch to ensure I am happy with the position and size and when I am happy time to start on my knickers.

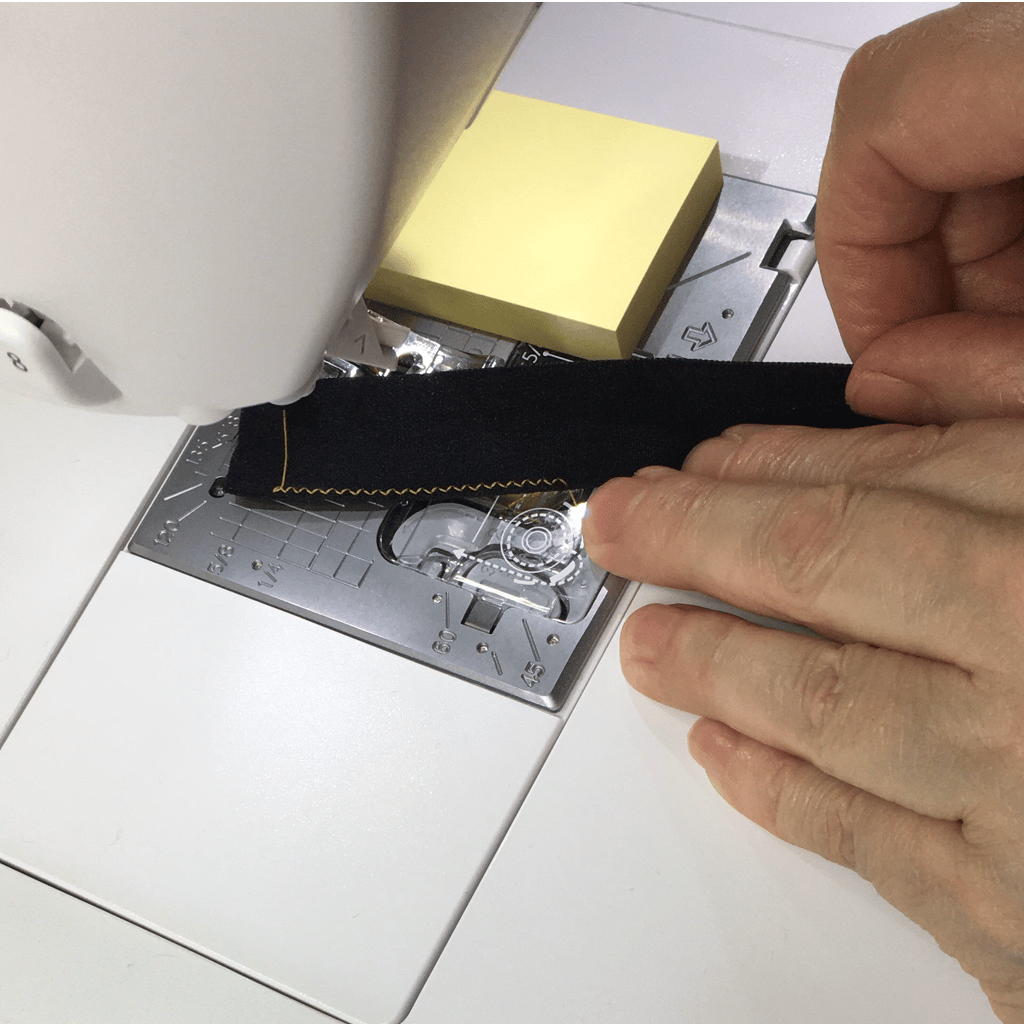

Once I’ve checked the position and stitch, I can start sewing.

With the position of the FOE set, next I need to establish the position of the fabric. This is where the extra cm of FOE at the beginning is useful.  I start sewing the elastic without the fabric in place, only a couple of stitches are necessary to start with. This allows me to confirm that my seam guide is in the correct position and that the stitches are along the edge and not too far in or off the elastic.  Also, with a couple of stitches in the elastic  and the needle down, it is secure while I position the fabric

A point to note – some FOE does not have a very visible centre line.  You may want to avoid these, or as I do, mark the centre line in chalk.

If the centre line is not visible, I will mark it in chalk.

I position the fabric just to the left of the centre line and note the position against the foot.  I will try to keep the fabric on this line while I sew, though a few millimetres either way while sewing will not be noticeable on the finished garment. I will then start sewing without exerting any pull on the FOE until I have two or three stitches attaching the fabric to the FOE.

A couple of stitches will secure the fabric and elastic
before stretching the elastic to match the fabric.

Now that the elastic and fabric are secure, we are ready to sew the seam.  Sewing a curved piece of fabric to a stretched, straight piece of elastic could be problematical, but I have found that the industrial style BOX feed system on the Juki DX7, makes it really easy.

Previously, with my other machines, when I was pulling against the feed dogs to stretch the elastic, I needed to pull the garment from behind to get the fabric to move.  This kept both my hands busy, and I had no control on the fabric itself.  Not anymore.  Now, I’m able to hold the fabric and the stretched FOE in one hand, and manipulate the curve of the fabric up to the centre line with the other, while the feed dogs pull the fabric through consistently and evenly. The BOX feed system on the Juki NX7 makes a BIG difference.

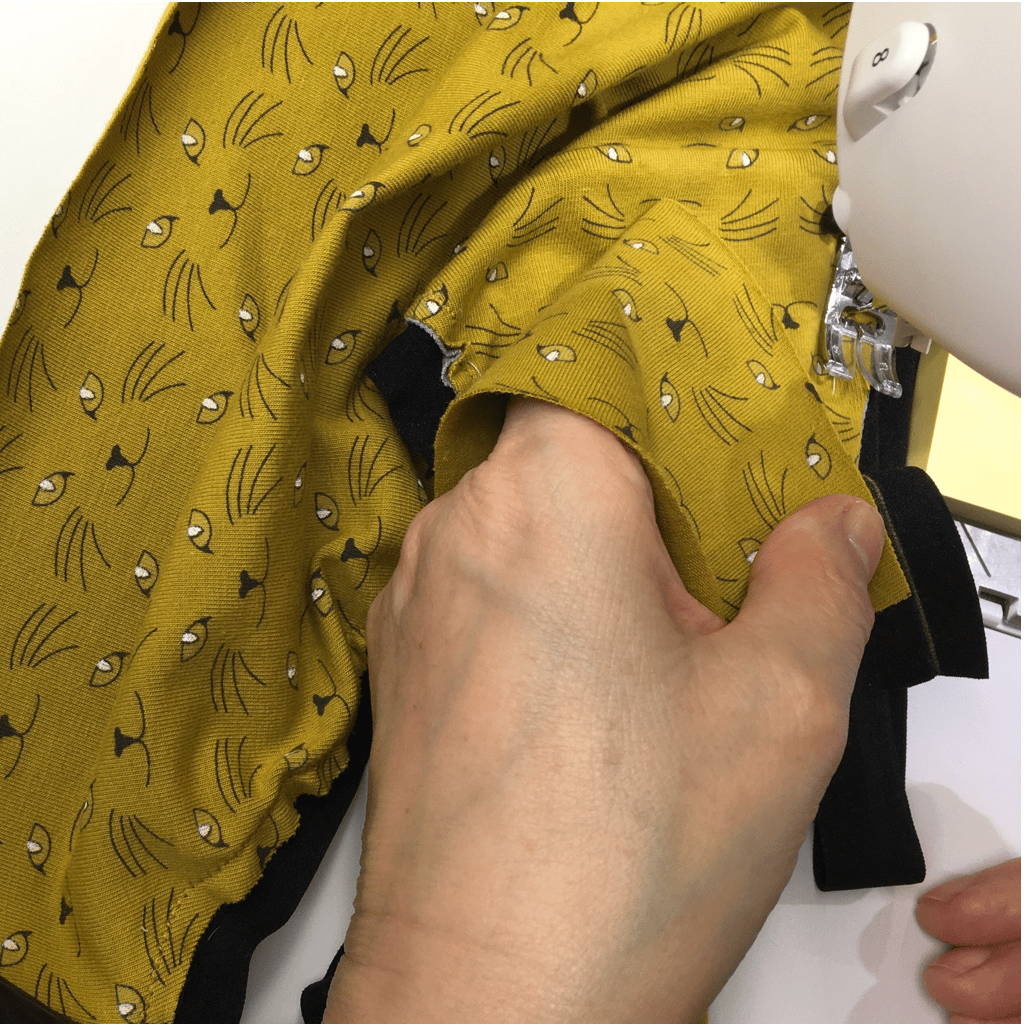

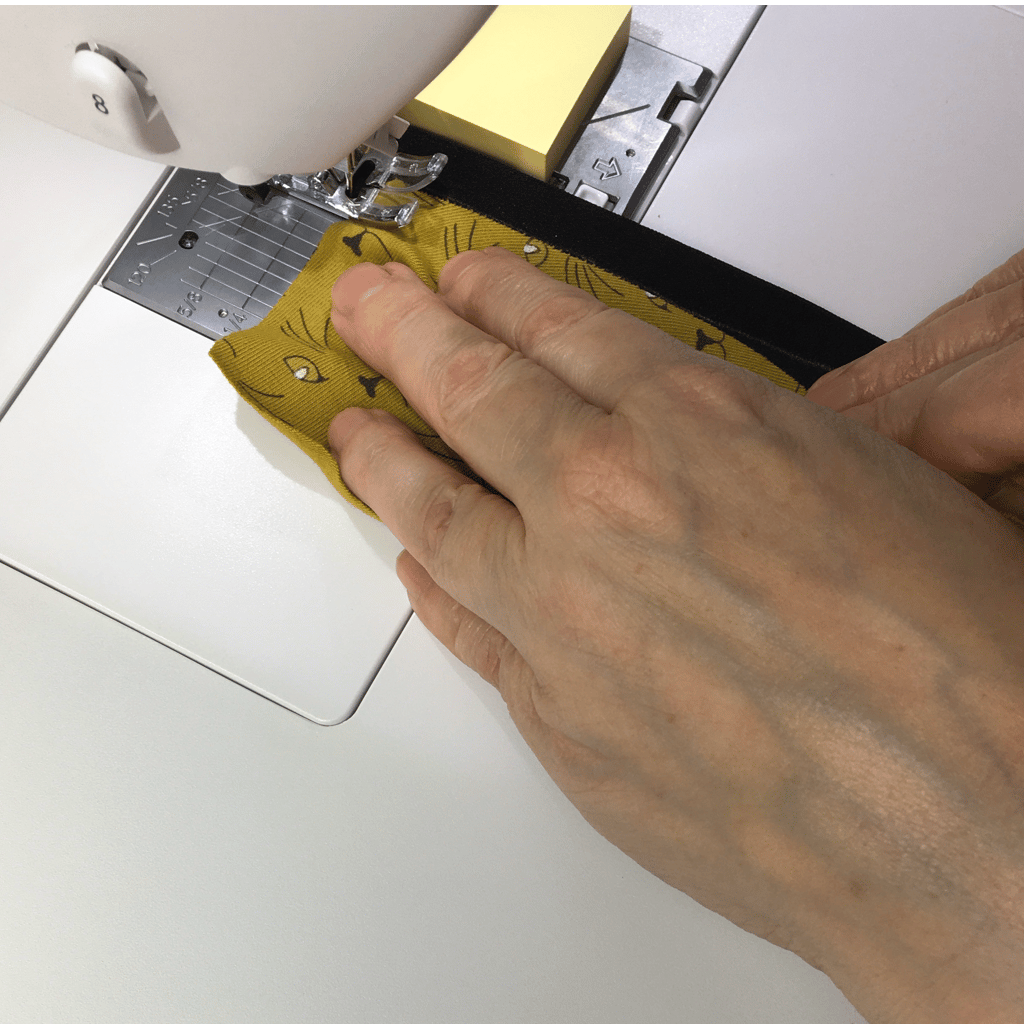

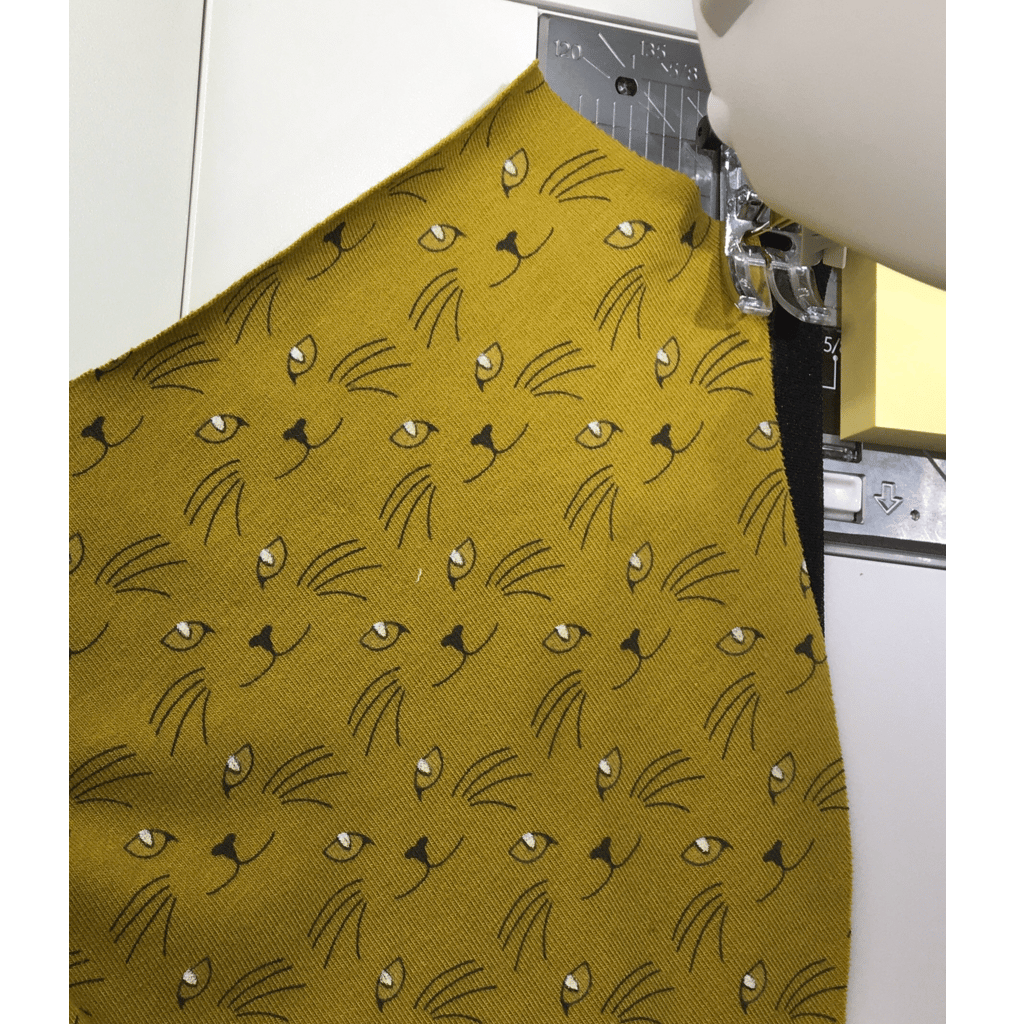

Stitching the curve of the fabric against the elastic.

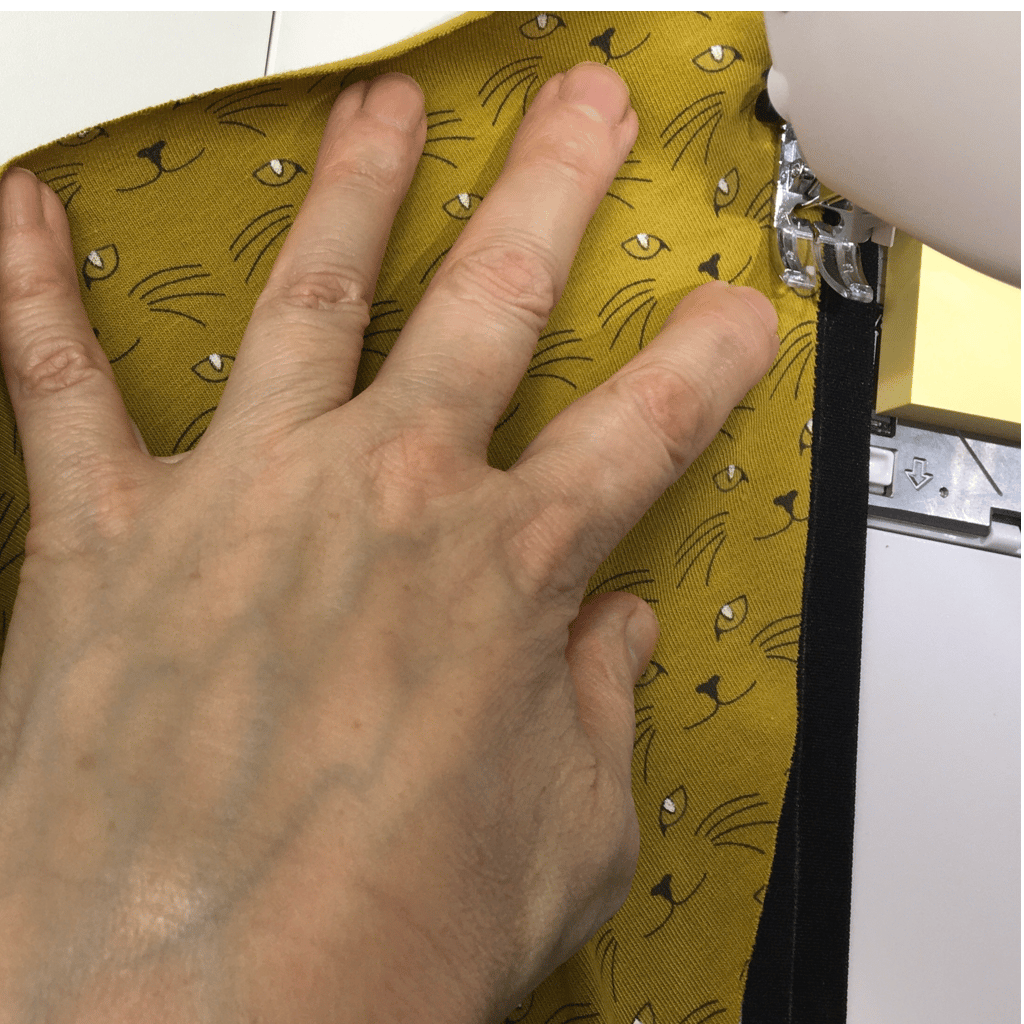

The BOX feed system gives you a spare hand to manipulate the fabric.

Initially I will stretch the fabric to the centre mark and then when I reach that point stretch the remaining elastic so there is a 1cm overlap at the end of the fabric, this gives me a little bit of the elastic to hold on to when I get near the end of the seam.

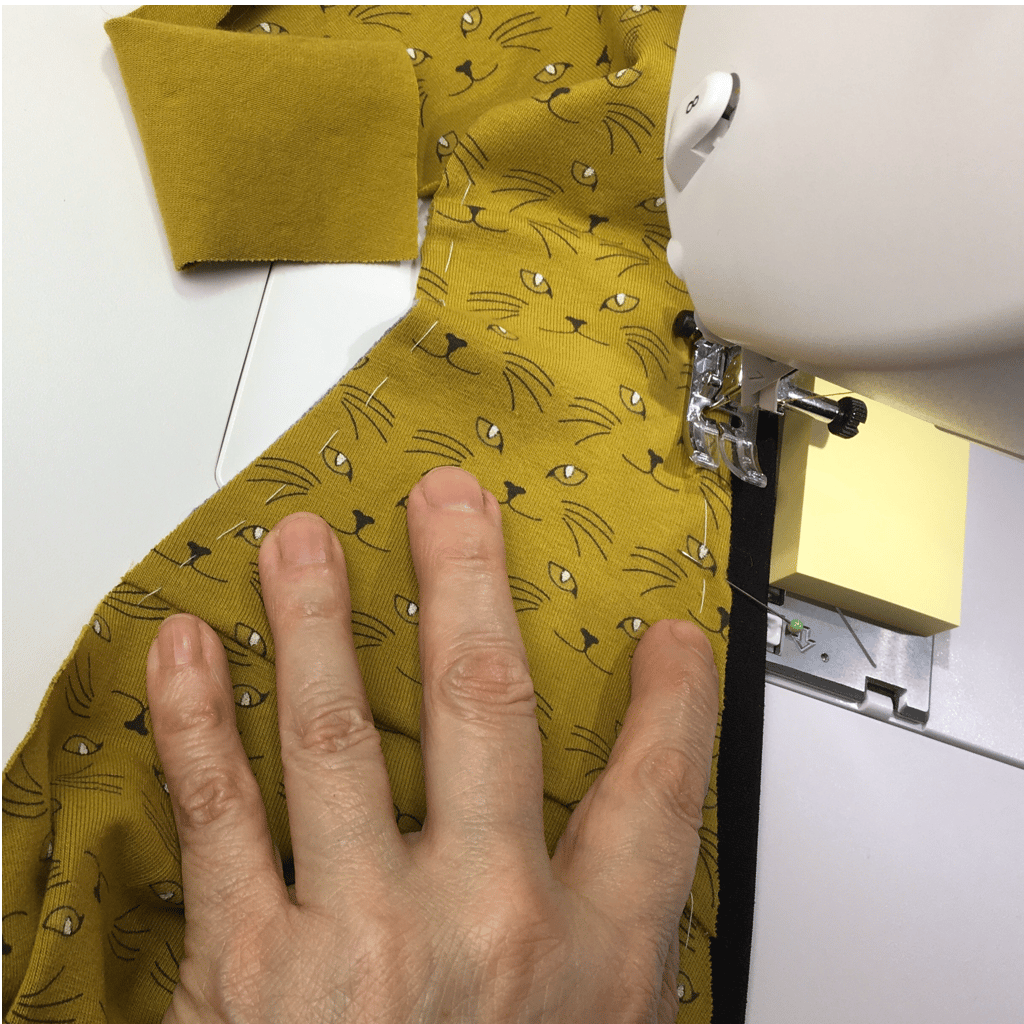

Reaching the centre point of the seam.
Leave 1cm of elastic beyond the end of the fabric

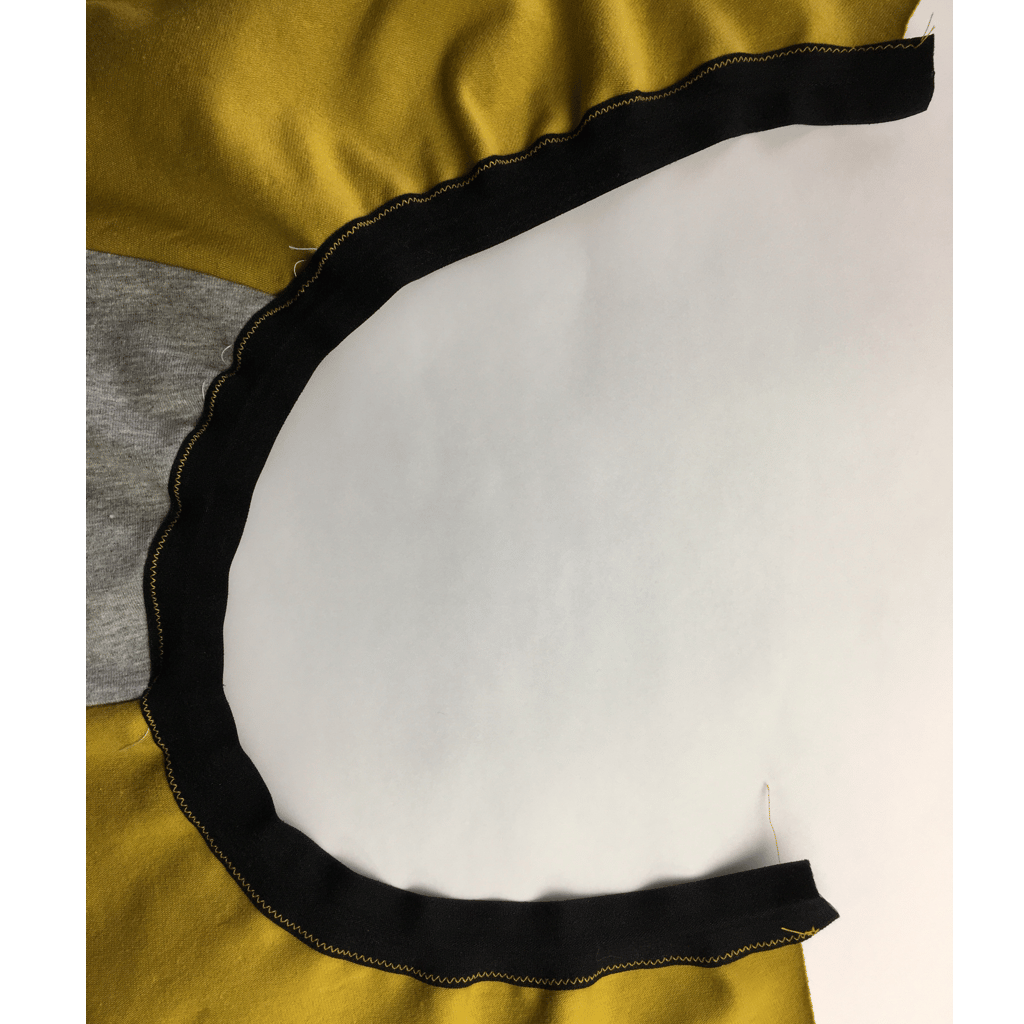

The FOE attached to the leg opening (wrong side).

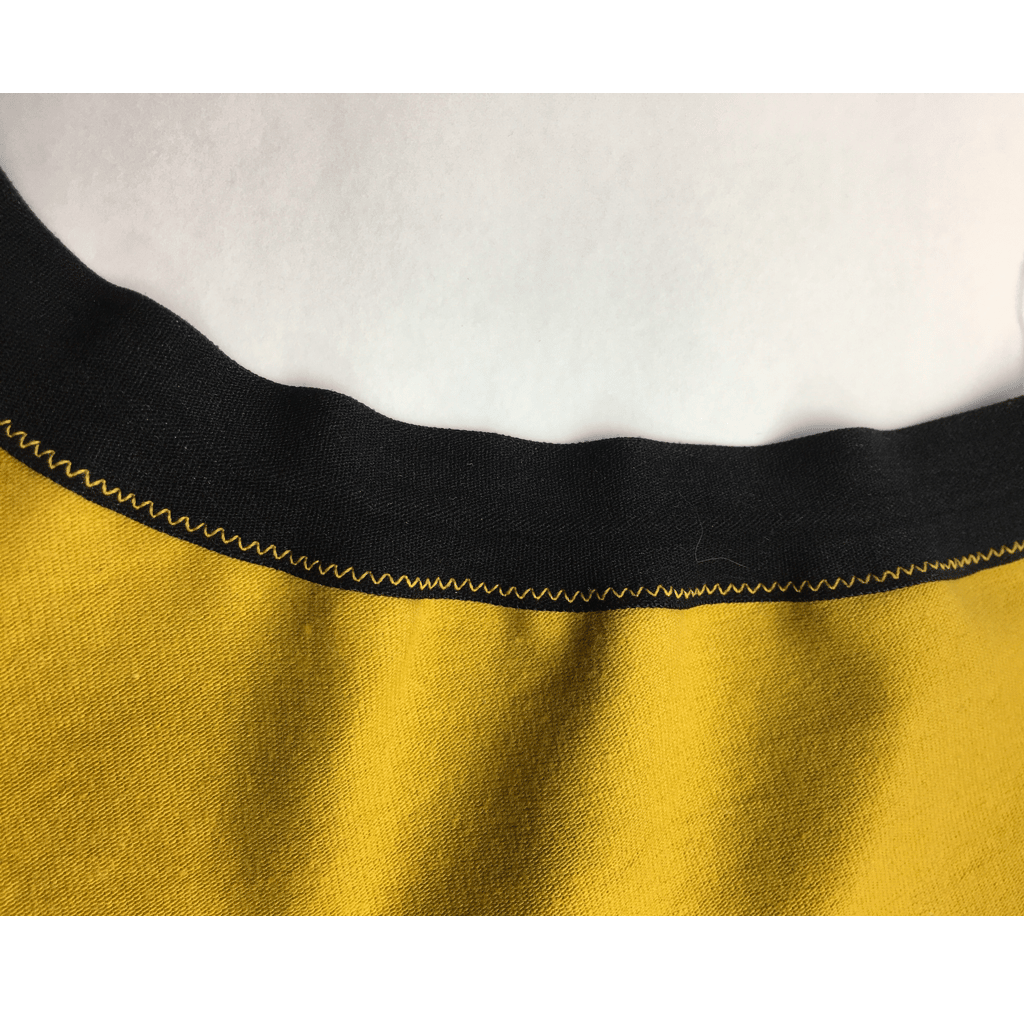

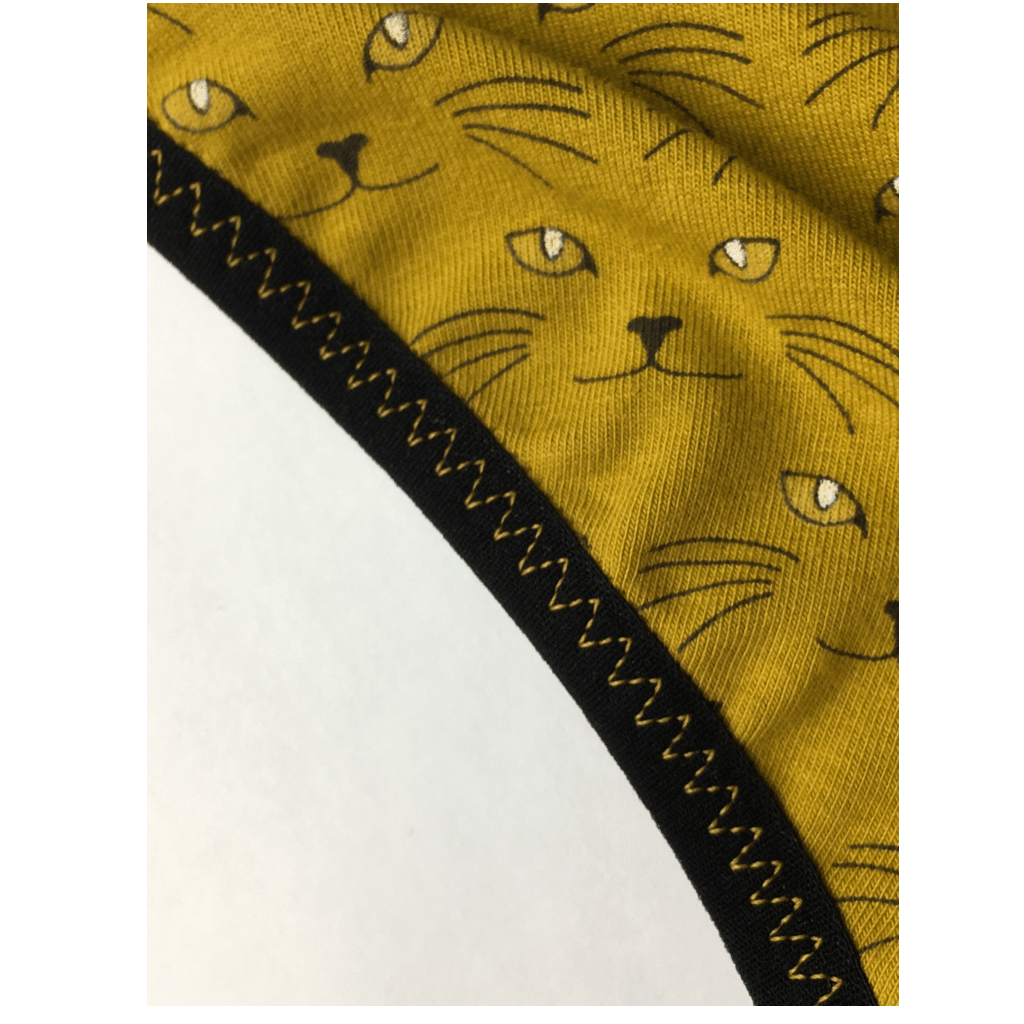

The stitching on the edge of the elastic. This is Step One of the Two Step process.

Now that the fabric and elastic are attached I need to set up for the second pass, folding the elastic in half.  For this a 3 step zig-zag is used and on the NX7 that is stitch #20.  I like to use a stitch width that is around 1/2 of the folded elastic width to give me a little wobble leeway and a medium width as I am not too keen on the look of a wide stitch.  Remember this seam will be sewn with the elastic stretched so when relaxed the stitches will look slightly closer together.

I always start with a 4.4 width and 1.0 length to see how it looks. I will place my test piece under the foot, partly lower the needle and move the elastic so the stitch line is closer to the left edge of the folded elastic.  I will then note where the  edge comes to on the foot and that will be my guide line. I will then do a test to ensure I am happy with my choice of length and width of stitch.  When I am happy I will start on the garment.  The extra elastic at the beginning will make the  start a lot easier.  Make 2 or 3 stitches in to the fabric before stretching the elastic and sewing the leg seam.

Fold over the elastic in half to cover the raw edge.

Ideally you should be stretching the elastic only enough for the fabric to be flat, the three step zig-zag will allow the finished seam to stretch further if needed.  Once again the BOX feed system will pull the elastic through smoothly and evenly so you can concentrate on keeping the edge on the guide.

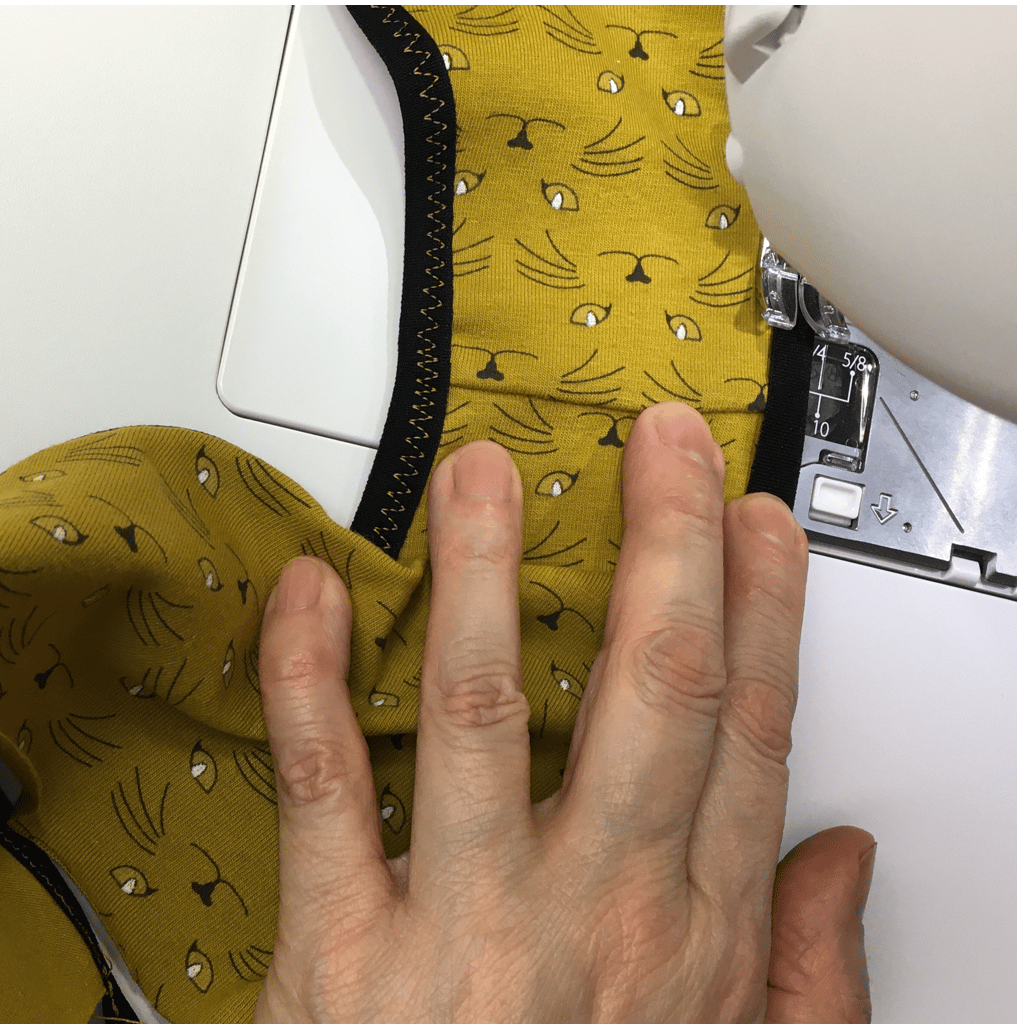

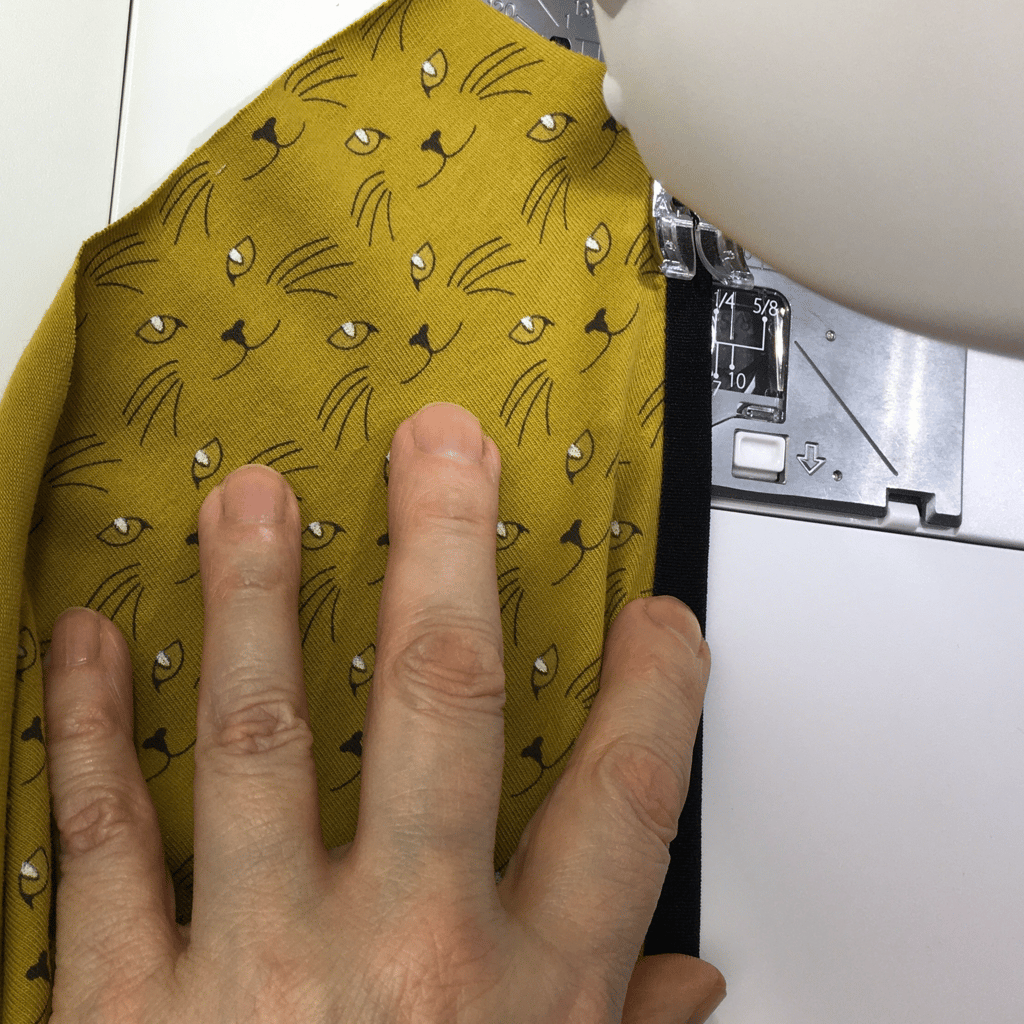

Stretch the elastic so the fabric is flat.

And there you have it, one smooth and even fold over elastic leg opening.

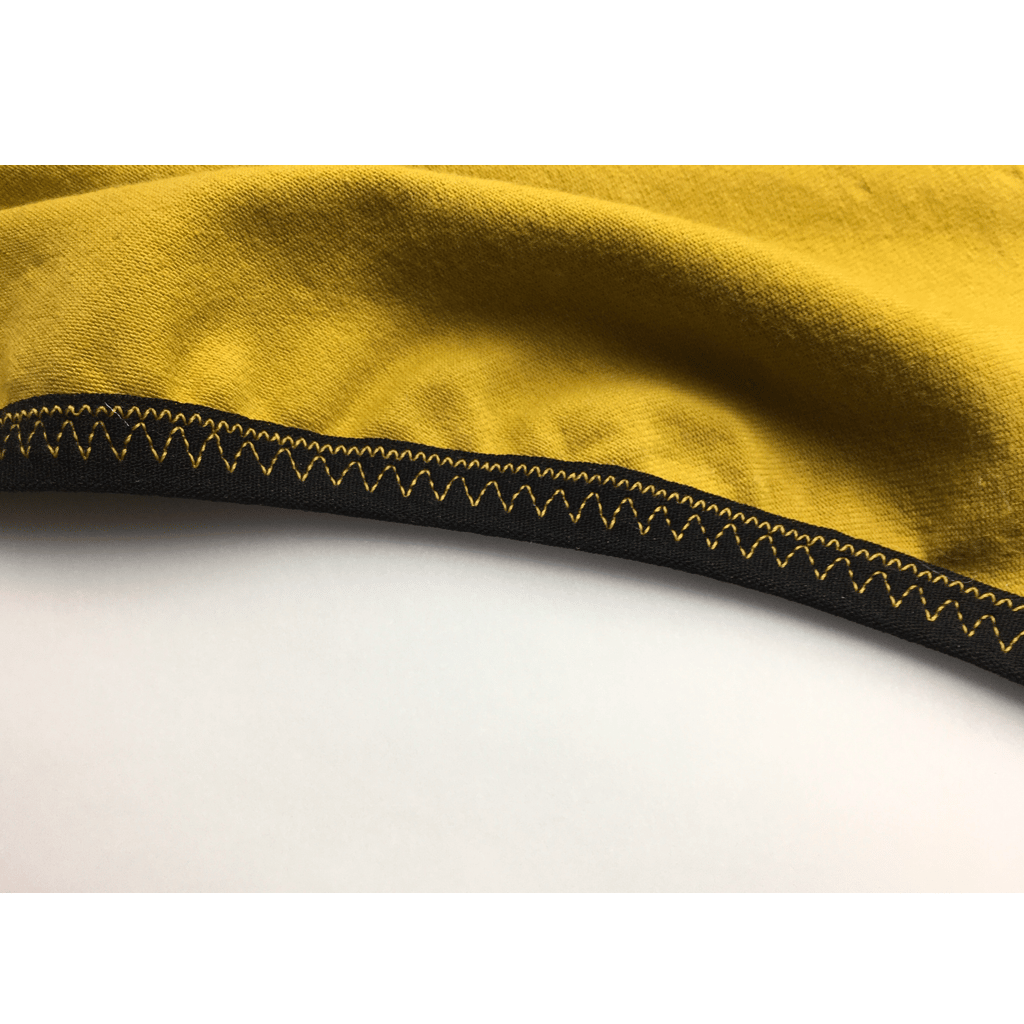

The finished outside seam.
The finished seam on the inside. Note the contrasting thread that shows
both seams in the Two Step Method.

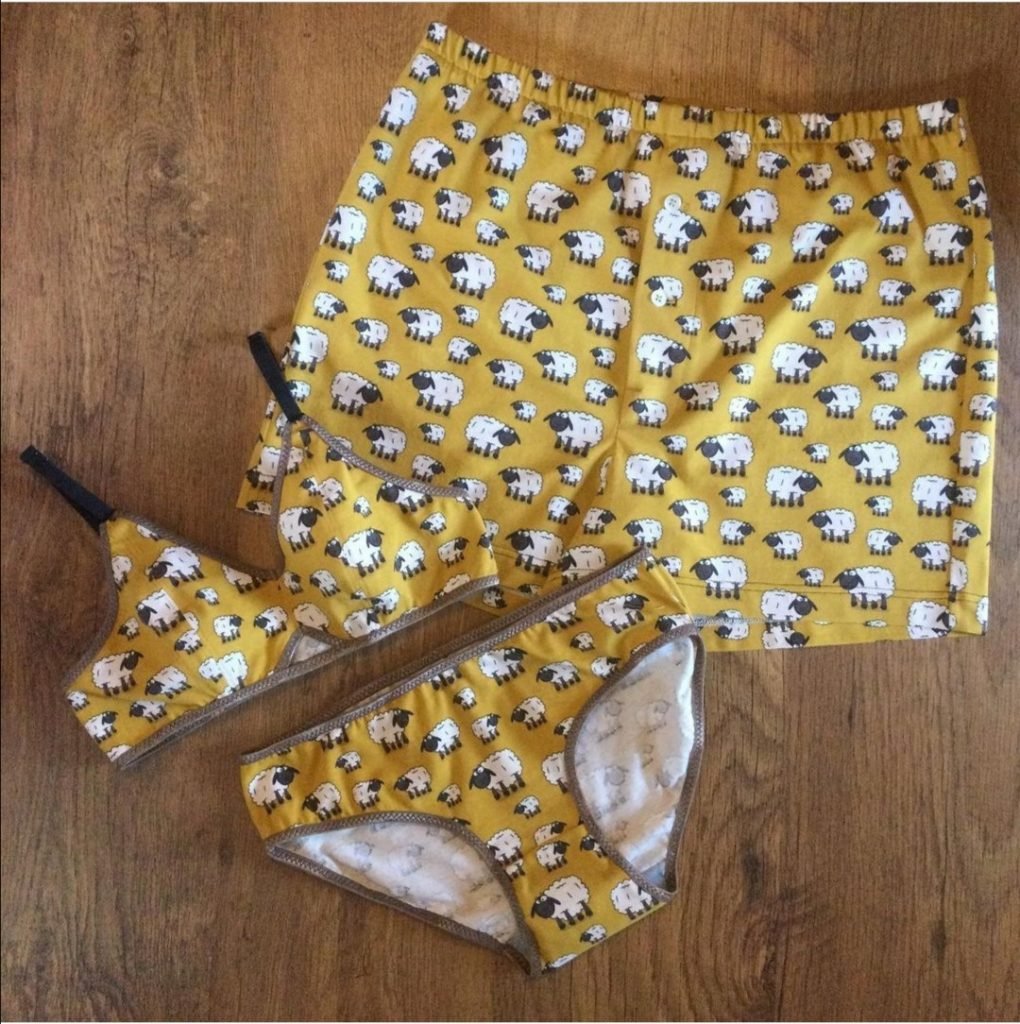

The finished knickers!
